2SK1580 - Switching N-Channel MOS FET

Datasheet Summary

Description

The 2SK1580 is an N -channel vertical type MOS FET which can be driven by 2.5 V power supply.

As the 2SK1580 is driven by low voltage and does not require consideration of driving current, it is suitable for appliance including VCR cameras and headphone stereos which need power saving.

Features

  • Directly driven by ICs having a 3 V power supply.
  • Not necessary to consider driving current because of its high input impedance.
  • Possible to reduce the number of parts by omitting the bias resistor. 2.0±0.2 0.3.
  • +00.1 0.65 0.65.

📥 Download Datasheet

Datasheet preview – 2SK1580

Datasheet Details

Part number 2SK1580
Manufacturer NEC
File Size 139.56 KB
Description Switching N-Channel MOS FET
Datasheet download datasheet 2SK1580 Datasheet
Additional preview pages of the 2SK1580 datasheet.

📁 Similar Datasheet

  • 2SK1581 - N-Channel MOSFET (Kexin)
  • 2SK1581C - N-Channel MOSFET (Renesas)
  • 2SK1582 - N-Channel MOSFET (Kexin)
  • 2SK1583 - MOS Field Effect Transistor (Kexin)
  • 2SK1584 - MOS Field Effect Transistor (Kexin)
  • 2SK1585 - MOS Field Effect Transistor (Kexin)
  • 2SK1586 - MOS Field Effect Transistor (Kexin)
  • 2SK1587 - MOS Field Effect Transistor (Kexin)
  • 2SK1588 - MOS Field Effect Transistor (Kexin)
  • 2SK1588-HF - N-Channel MOSFET (Kexin)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text

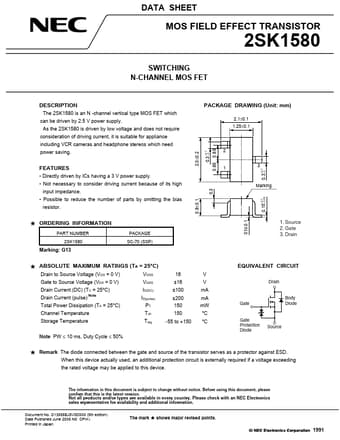

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK1580 SWITCHING N-CHANNEL MOS FET DESCRIPTION The 2SK1580 is an N -channel vertical type MOS FET which can be driven by 2.5 V power supply. As the 2SK1580 is driven by low voltage and does not require consideration of driving current, it is suitable for appliance including VCR cameras and headphone stereos which need power saving. FEATURES • Directly driven by ICs having a 3 V power supply. • Not necessary to consider driving current because of its high input impedance. • Possible to reduce the number of parts by omitting the bias resistor. 2.0±0.2 0.3−+00.1 0.65 0.65 PACKAGE DRAWING (Unit: mm) 2.1±0.1 1.25±0.1 2 13 Marking 0.3−+00.1 0 to 0.1 0.15−+00..015 0.9±0.1 0.
