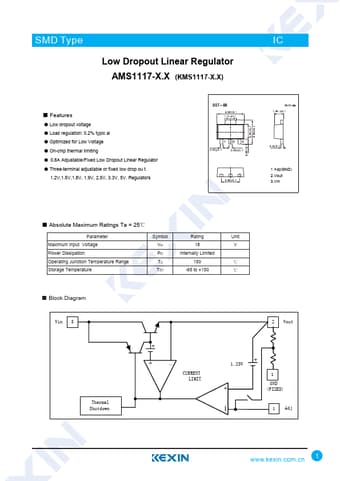

AMS1117-1.8, AMS1117-1.2 - Low Dropout Linear Regulator

Kexin

Datasheet Details

Part number	AMS1117-1.8, AMS1117-1.2
Manufacturer	Kexin
File Size	807.88 KB
Description	Low Dropout Linear Regulator
Datasheet	AMS1117-1.2-Kexin.pdf
Note	This datasheet PDF includes multiple part numbers: AMS1117-1.8, AMS1117-1.2. Please refer to the document for exact specifications by model.

s.
Low dropout voltage.
Load regulation: 0.2% typic al.
Optimized for Low Voltage.
On-chip thermal limiting.
0.8A Adjustable/Fixed Low Dropout Linear Regulator.
Three-terminal adjustable or fixed low drop ou t 1.2V,1.5V,1.8V, 1.9V, 2.5V, 3.3V, 5V. Regulators 1.70 0.1 0.42 0.1 0.46 0.1 1 Adj(GND) 2.Vout 3.Vin.
Absolute Maximum Ratings Ta = 25℃ Parameter Maximum Input Voltage Power Dissipation Operating Junction Temperature Range Storage Temperature Symbol.
