AMS1117-5.0

Low Dropout Linear Regulator

AMS1117-5.0 Features

* Low dropout voltage

* Load regulation: 0.2% typic al

* Optimized for Low Voltage

* On-chip thermal limiting

* 0.8A Adjustable/Fixed Low Dropout Linear Regulator

* Three-terminal adjustable or fixed low drop ou t 1.2V,1.5V,1.8V, 1.9V, 2.5V, 3.3V, 5V. Regulators 1.70 0.1 0.

AMS1117-5.0 Datasheet (807.88 KB)

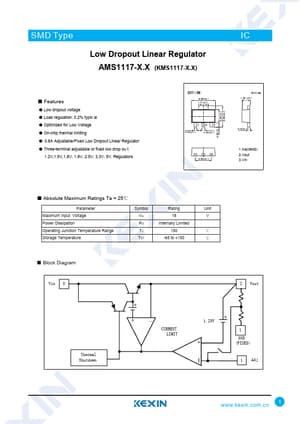

Preview of AMS1117-5.0 PDF

Datasheet Details

Part number:

AMS1117-5.0

Manufacturer:

Kexin

File Size:

807.88 KB

Description:

Low dropout linear regulator.
