MURS260 - Ultrafast Rectifier Diodes

Product Overview

Kexin

Part number	MURS260
Manufacturer	Kexin
File Size	739.64 KB
Description	Ultrafast Rectifier Diodes
Datasheet	MURS260 Datasheet

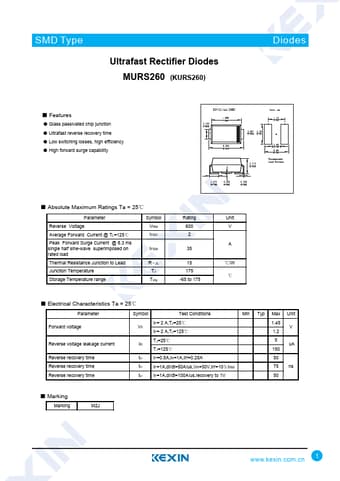

Additional preview pages of the MURS260 datasheet.

s.
Glass passivated chip junction.
Ultrafast reverse recovery time.
Low switching losses, high efficiency.
High forward surge capability DO-214AA(SMB) 2.108 1.905 2 4.699 4.064 3.937 2.30 1 3.302 2.10 Unit: mm 4.12 3.92 5.588 5.080 2.348 2.108 2.65 2.45 5.59 5.39 Recommended Land Pattern 1.270 0.762 0.203 0.051 0.305 0.152.
Absolute Maximum Ratings Ta = 25℃ Parameter Reverse Voltage Average Forward Current @ TL=125℃ Peak Forward Surge Current @ 8.3 ms single.
