MURS260-M3, MURS240-M3 Surface Mount Ultrafast Plastic Rectifier

MURS260-M3 Description

www.vishay.com MURS240-M3, MURS260-M3 Vishay General Semiconductor Surface Mount Ultrafast Plastic Rectifier DO-214AA (SMB) .

MURS260-M3 Features

* Glass passivated pellet chip junction
* Ideal for automated placement
* Ultrafast reverse recovery time
* Low switching losses, high efficiency
* High forward surge capability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* Ma

MURS260-M3 Applications

* For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication. MECHANICAL DATA Case: DO-214AA (SMB) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and co

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MURS260-M3, MURS240-M3. Please refer to the document for exact specifications by model.

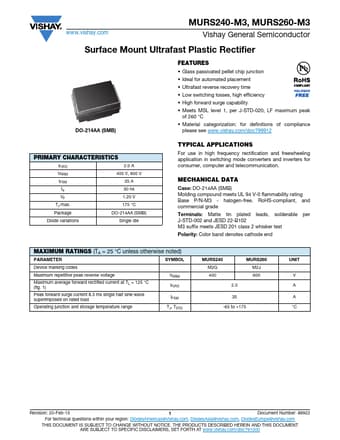

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MURS260-M3, MURS240-M3
Manufacturer
Vishay ↗
File Size
88.40 KB
Datasheet
MURS240-M3-Vishay.pdf
Description
Surface Mount Ultrafast Plastic Rectifier
Note
This datasheet PDF includes multiple part numbers: MURS260-M3, MURS240-M3.
Please refer to the document for exact specifications by model.
