MURS120 Surface Mount Ultrafast Plastic Rectifier

MURS120 Description

www.vishay.com MURS120 Vishay General Semiconductor Surface Mount Ultrafast Plastic Rectifier DO-214AA (SMB) .

MURS120 Features

* Glass passivated pellet chip junction
* Ideal for automated placement
* Ultrafast reverse recovery time
* Low switching losses, high efficiency
* High forward surge capability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* AE

MURS120 Applications

* For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication. MECHANICAL DATA Case: DO-214AA (SMB) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Ba

📥 Download Datasheet

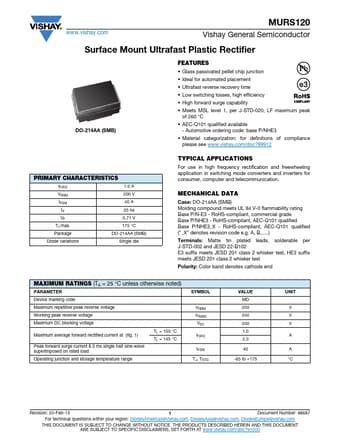

Preview of MURS120 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MURS120
Manufacturer
Vishay ↗
File Size
87.08 KB
Datasheet
MURS120-Vishay.pdf
Description
Surface Mount Ultrafast Plastic Rectifier
