MURS160, MURS140 Rectifier

MURS160 Description

MURS140 & MURS160 Vishay General Semiconductor Surface Mount Ultrafast Plastic Rectifier .

MURS160 Features

* Glass passivated chip junction
* Ideal for automated placement
* Ultrafast reverse recovery time
* Low switching losses, high efficiency
* High forward surge capability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C DO-214AA (SMB)

MURS160 Applications

* For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication. MECHANICAL DATA Case: DO-214AA (SMB) Epoxy meets UL 94V-0 flammability rating Terminals: Matte tin plated leads, solderable per J-STD-002 and

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MURS160, MURS140. Please refer to the document for exact specifications by model.

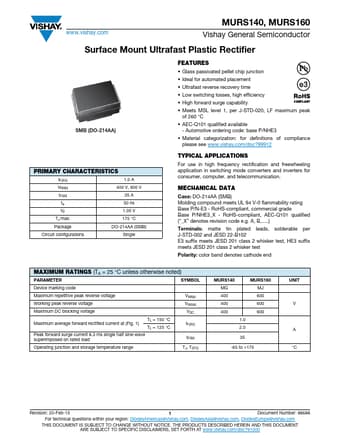

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MURS160, MURS140
Manufacturer
Vishay ↗
File Size
87.75 KB
Datasheet
MURS140_Vishay.pdf
Description
Rectifier
Note
This datasheet PDF includes multiple part numbers: MURS160, MURS140.
Please refer to the document for exact specifications by model.
