MURS140 Rectifier

MURS140 Description

MURS140 & MURS160 Vishay General Semiconductor Surface Mount Ultrafast Plastic Rectifier .

MURS140 Features

* Glass passivated chip junction
* Ideal for automated placement
* Ultrafast reverse recovery time
* Low switching losses, high efficiency
* High forward surge capability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C DO-214AA (SMB)

MURS140 Applications

* For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication. MECHANICAL DATA Case: DO-214AA (SMB) Epoxy meets UL 94V-0 flammability rating Terminals: Matte tin plated leads, solderable per J-STD-002 and

📥 Download Datasheet

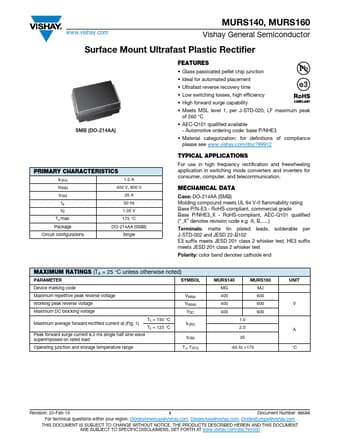

Preview of MURS140 PDF
datasheet Preview Page 2 datasheet Preview Page 3
