P5000SB - Thyristor Surge Suppressors

Kexin

Datasheet Details

Part number	P5000SB
Manufacturer	Kexin
File Size	1.18 MB
Description	Thyristor Surge Suppressors

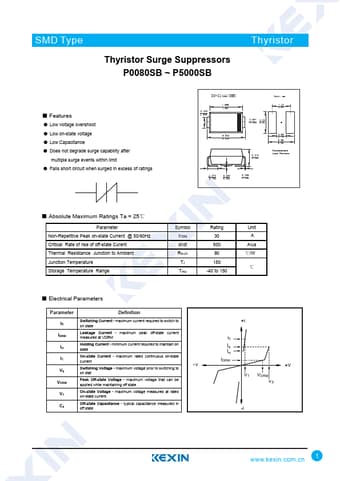

Datasheet	P5000SB-Kexin.pdf

s.
Low voltage overshoot.
Low on-state voltage.
Low Capacitance.
Does not degrade surge capability after multiple surge events within limit.
Fails short circuit when surged in excess of ratings DO-214AA(SMB) 2.108 1.905 2 4.699 4.064 3.937 2.30 1 3.302 2.10 Unit: mm 4.12 3.92 5.588 5.080 2.348 2.108 2.65 2.45 5.59 5.39 Recommended Land Pattern 1.270 0.762 0.203 0.051 0.305 0.152.
Absolute Maximum Ratings Ta = 25℃ Parameter Non-Repetitive Peak on-state Cu.
