P5002CMG Datasheet - UNIKC

P5002CMG N-Channel MOSFET

P5002CMG N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 20V 50mΩ @VGS = 4.5V ID 4A SOT-23 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage Gate-Source Voltage VDS 20 VGS ±8 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID IDM 4 3.2 20 Power Dissipation TA = 25 °C TA = 70 °C PD 1.3 1 Operating Junction & Storage Temperature Range TJ, TSTG -55 to 150 UNITS V .

P5002CMG Datasheet (350.61 KB)

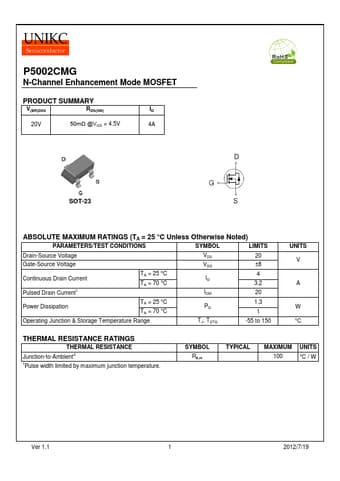

Preview of P5002CMG PDF
P5002CMG Datasheet Preview Page 2 P5002CMG Datasheet Preview Page 3

Datasheet Details

Part number:

P5002CMG

Manufacturer:

UNIKC

File Size:

350.61 KB

Description:

N-channel mosfet.
