SS1020F - Schottky Diodes

SS1020F Description

SMD Type Schottky Diodes SS1020F ~ SS10100F Diodes * .

SS1020F Features

* Fast switching speed
* Low power loss, high efficieucy
* Surface mount package ideally suited for autonatic insertion SOD-123F Unit:mm Cathode Band Top View 0.8± 0.1 1.85 ± 0.1 0.20 1.20 ~ 1.35 2.8 ± 0.1 0.65 ± 0.1 3.7 ± 0.1
* Absolute Maximum Ratings Ta = 25℃ Parameter

📥 Download Datasheet

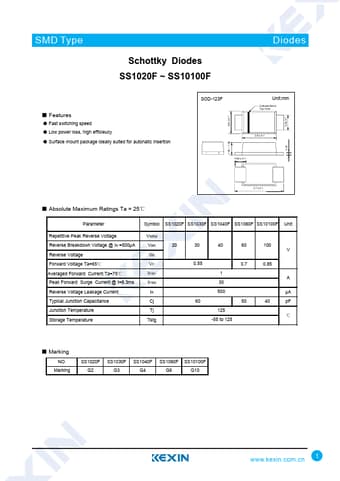

Preview of SS1020F PDF
datasheet Preview Page 2

Datasheet Details

Part number
SS1020F
Manufacturer
Kexin
File Size
673.14 KB
Datasheet
SS1020F-Kexin.pdf
Description
Schottky Diodes
