The SS26F is Schottky Barrier Rectifier designed by Kexin.
| Part number | SS26F, SS22F |
|---|---|
| Manufacturer | Kexin |
| File Size | 123.83 KB |
| Description | Schottky Barrier Rectifier |
| Datasheet |
 SS22F-Kexin.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: SS26F, SS22F. Please refer to the document for exact specifications by model. |
|
|

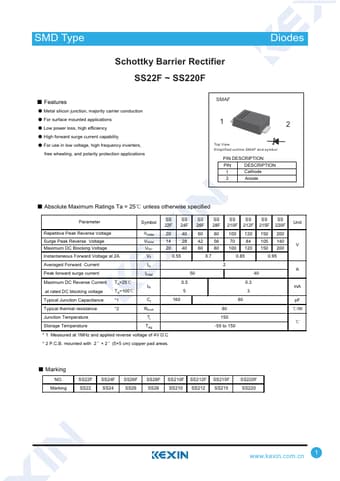

PIN DESCRIPTION 1 Cathode 2 Anode Ƶ Absolute Maximum Ratings Ta = 25ć unless otherwise specified Parameter Symbol SS 22F SS 24F SS 26F SS SS SS SS SS 28F 210F 212F 215F 220F Repetitive Peak Reverse Voltage Surge Peak Reverse Voltage Maximum DC Blocking Voltage Instantaneous Forward Voltage at 2A VRRM VRSM VDC VF 20 40 14 28 20 40 0.55 60 80 42 56 60 80 0.7 100 120 70 84 100 120 0.85 150 200 105 140 150 200 0.95 Averaged Forward Current IO 2 Peak forward surge current IFSM 50
