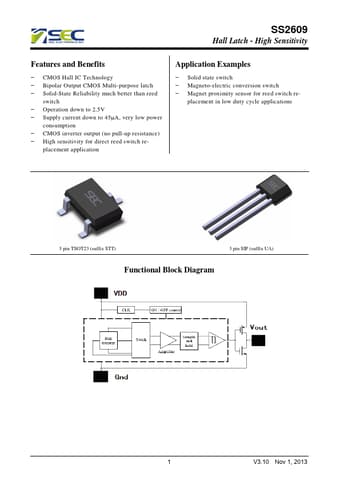

SS2609 Datasheet Preview — Preview of SS2609 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SS2609
Manufacturer: SEC
File Size: 326.31 KB
Datasheet: SS2609-SEC.pdf
Description: Hall Latch - High Sensitivity

SS2609 Product details

Description

The SS2609 Hall effect sensor IC is fabricated from mixed signal CMOS technology.

Features

CMOS Hall IC Technology.
Bipolar Output CMOS Multi-purpose latch.
Solid-State Reliability much better than reed switch.
Operation down to 2.5V.
Supply current down to 45μA, very low power consumption.
CMOS inverter output (no pull-up resistance).
High sensitivity for direct reed switch re- placement application Application Examples.
Solid state switch.
Magneto-electric conversion switch.
Magnet proximity.
