SS32F-HF - Schottky Diodes

Product Overview

Kexin

📥 Download Datasheet

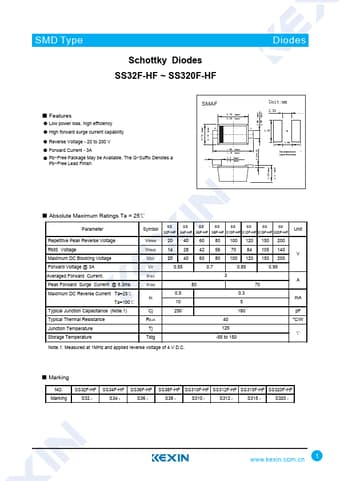

SS32F-HF Schottky Diodes by Kexin - Datasheet Preview — Datasheet preview – SS32F-HF

Datasheet Details

Part number	SS32F-HF
Manufacturer	Kexin
File Size	1.00 MB
Description	Schottky Diodes
Datasheet	SS32F-HF Datasheet
Additional preview pages of the SS32F-HF datasheet.

Product details

Features

s.
Low power loss, high efficiency.
High forward surge current capability.
Reverse Voltage - 20 to 200 V.
Forward Current - 3A.
Pb.
Free Package May be Available. The G.
Suffix Denotes a Pb.
Free Lead Finish 2.70 (max) 2.40 (min) SMAF + 3.70 (max) 3.30 (min) - 4.90 (max) 4.40 (min) 1.3 (max) 1.0 (min) 1.60 (max) 1.30 (min) Unit:mm 2.80 1.80 1.60 Recommended Land Pattern 0.18-0.23 1.30(max) 1.1 (min).
Absolute Maximum Ratings Ta = 25℃ P.
