SS32F - Surface Mount Schottky Barrier Rectifier

SS32F Description

SS3xxF Surface Mount Schottky Barrier Rectifier VOLTAGE RANGE 20 to 200 Volts CURRENT 3.0 Amperes .
1 Cathode 2 Anode 12 Top View Marking Code: SS32. SS320 Simplified outline SMAF and symbol MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS R.

SS32F Features

* Metal silicon junction, majority carrier conductionl

SS32F Applications

* Low power loss, high efficiency
* High forward surge current capability
* For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
* Case: SMAF
* P/N suffix V means AEC-Q101 qualified
* P/N suffix V means Halogen-free PINNING PI

📥 Download Datasheet

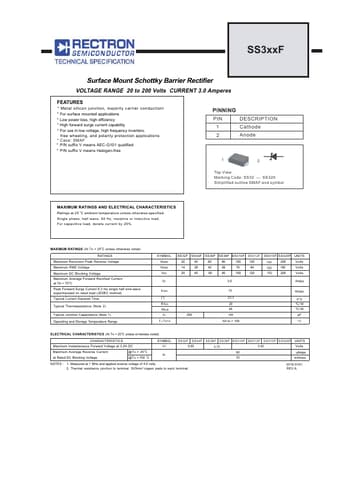

Preview of SS32F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS32F
Manufacturer
Rectron
File Size
68.84 KB
Datasheet
SS32F-rectron.pdf
Description
Surface Mount Schottky Barrier Rectifier
