WPM2015 - P-Channel MOSFET

Product Overview

Kexin

📥 Download Datasheet

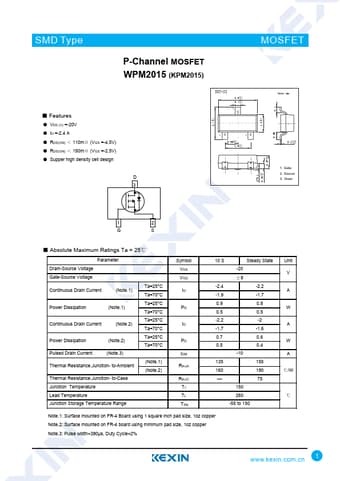

WPM2015 P-Channel MOSFET by Kexin - Datasheet Preview — Datasheet preview – WPM2015

Datasheet Details

Part number	WPM2015
Manufacturer	Kexin
File Size	1.43 MB
Description	P-Channel MOSFET
Datasheet	WPM2015 Datasheet
Additional preview pages of the WPM2015 datasheet.

Product details

Features

s.
VDS (V) =-20V.
ID =-2.4 A.
RDS(ON) ＜ 110mΩ (VGS =-4.5V).
RDS(ON) ＜ 150mΩ (VGS =-2.5V).
Supper high density cell design +0.12.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 12 0.95 +0.1 -0.1 1.9 +0.1 -0.1 D 3 0-0.1 +0.10.38 -0.1 +0.10.97 -0.1 +0.11.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 12 GS.
Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1) Ta=25°C Ta=.
