AA3535SEL1Z1S

SMD LED

Kingbright Corporation

AA3535SEL1Z1S Features

* z White SMD package, silicone resin. z Low thermal resistance. z Compatible with IR-reflow processes. z ESD protection. z Package: 2000pcs / reel. z Moisture sensitivity level : level 2a. z RoHS compliant. Package Dimensions 3.5x3.5 mm SMD CHIP LED LAMP Part Number: AA3535SEL1Z1S Hyper Orange Descr

AA3535SEL1Z1S General Description

z The Hyper Orange device is made with TS AlGaInP light emitting diode. z Electrostatic discharge and power surge could damage the LEDs. z It is recommended to use a wrist band or antielectrostatic glove when handling the LEDs. z All devices, equipments and machineries must be electrically grounded.

AA3535SEL1Z1S Datasheet (404.47 KB)

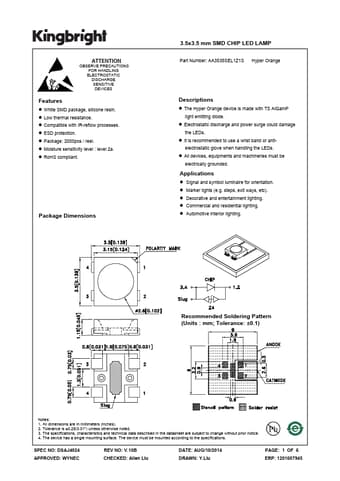

AA3535SEL1Z1S Datasheet Preview — Preview of AA3535SEL1Z1S PDF

Datasheet Details

Part number:

AA3535SEL1Z1S

Manufacturer:

Kingbright Corporation

File Size:

404.47 KB

Description:

Smd led.
