AA3535SYL1Z1S Datasheet - Kingbright

AA3535SYL1Z1S, SMD LED

ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC DISCHARGE SENSITIVE DEVICES .
z The source color devices are made with AlGaInP Light Emitting Diode.

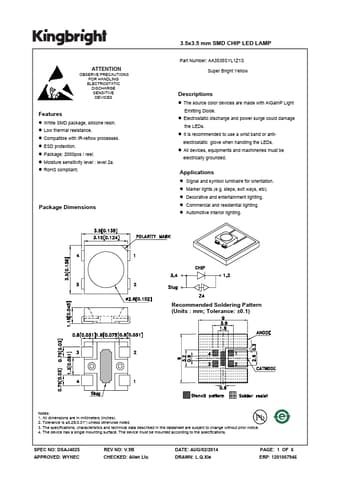

datasheet Preview Page 1 from Datasheet4u.com

AA3535SYL1Z1S-Kingbright.pdf

AA3535SYL1Z1S Datasheet Preview — Preview of AA3535SYL1Z1S PDF

Datasheet Details

Part number:

AA3535SYL1Z1S

Manufacturer:

Kingbright

File Size:

380.18 KB

Description:

SMD LED

Features

* z White SMD package, silicone resin. z Low thermal resistance. z Compatible with IR-reflow processes. z ESD protection. z Package: 2000pcs / reel. z Moisture sensitivity level : level 2a. z RoHS compliant. Package Dimensions 3.5x3.5 mm SMD CHIP LED LAMP Part Number: AA3535SYL1Z1S Super Bright Yello

Applications

* z Signal and symbol luminaire for orientation. z Marker lights (e. g. steps, exit ways, etc). z Decorative and entertainment lighting. z Commercial and residential lighting. z Automotive interior lighting. Recommended Soldering Pattern (Units : mm; Tolerance: ±0.1) Notes: 1. All dimensions are in m
