SA03-11GWA

7.62mm (0.3INCH) SINGLE DIGIT NUMERIC DISPLAY

SA03-11GWA Features

* z 0.3 inch digit height. z Excellent character appearance. z Easy mounting on P.C. boards or sockets. z Mechanically rugged. z Standard : gray face,white segment. z RoHS compliant. 7.62mm (0.3INCH) SINGLE DIGIT NUMERIC DISPLAY Part Number: SA03-11GWA Green Description The Green source color devi

SA03-11GWA General Description

The Green source color devices are made with Gallium Phosphide Green Light Emitting Diode. Package Dimensions& Internal Circuit Diagram Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. The specifications, characteristics and technical data d.

SA03-11GWA Datasheet (225.25 KB)

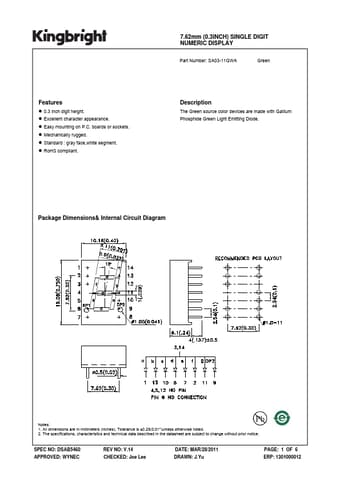

Preview of SA03-11GWA PDF

Datasheet Details

Part number:

SA03-11GWA

Manufacturer:

Kingbright Electronic

File Size:

225.25 KB

Description:

7.62mm (0.3inch) single digit numeric display.
