SA03-11SRWA

7.62mm (0.3INCH) SINGLE DIGIT NUMERIC DISPLAY

SA03-11SRWA Features

* z 0.3 inch digit height. z Excellent character appearance. z Easy mounting on P.C. boards or sockets. z Mechanically rugged. z Standard : gray face,white segment. z RoHS compliant. 7.62mm (0.3INCH) SINGLE DIGIT NUMERIC DISPLAY Part Number: SA03-11SRWA Super Bright Red Description The Super Brigh

SA03-11SRWA General Description

The Super Bright Red source color devices are made with Gallium Aluminum Arsenide Red Light Emitting Diode. Package Dimensions& Internal Circuit Diagram Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. The specifications, characteristics and.

SA03-11SRWA Datasheet (224.11 KB)

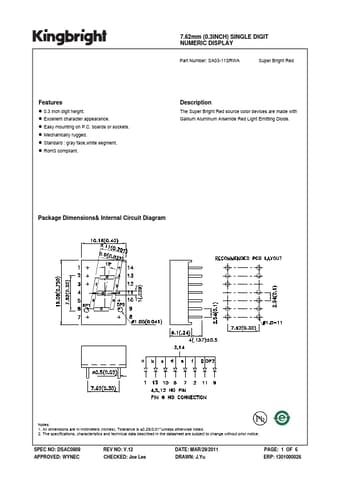

Preview of SA03-11SRWA PDF

Datasheet Details

Part number:

SA03-11SRWA

Manufacturer:

Kingbright Electronic

File Size:

224.11 KB

Description:

7.62mm (0.3inch) single digit numeric display.
