BC56-12SEKWA - Three Digit Numeric Display

Datasheet Summary

Description

The Super Bright Orange device is made with AlGaInP (on GaAs substrate) light emitting diode chip.

Notes: 1.

All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

Features

  • z 0.56 inch digit height. z Low current operation. z Excellent character appearance. z Easy mounting on P. C. boards or sockets. z Mechanically rugged. z Standard: gray face, white segment. z RoHS compliant. 14.22mm (0.56INCH) THREE DIGIT.

📥 Download Datasheet

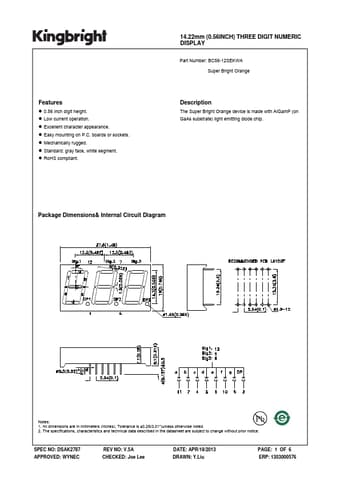

Datasheet preview – BC56-12SEKWA

Datasheet Details

Part number BC56-12SEKWA
Manufacturer Kingbright
File Size 236.51 KB
Description Three Digit Numeric Display
Datasheet download datasheet BC56-12SEKWA Datasheet
Additional preview pages of the BC56-12SEKWA datasheet.
