BC56-12SRWA - Three Digit Numeric Display

BC56-12SRWA Description

BC56-12SRWA 14.22 mm (0.56 inch) Three Digit Numeric Display .
The Super Bright Red source color devices are made with Gallium Aluminum Arsenide Red Light Emitting Diode Electrostatic discharge and power surge co.

BC56-12SRWA Applications

* Home and smart appliances Display time and digital combination Industrial and instrumental applications Numeric status ATTENTION Observe precautions for handling electrostatic discharge sensitive devices PACKAGE DIMENSIONS Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.0

📥 Download Datasheet

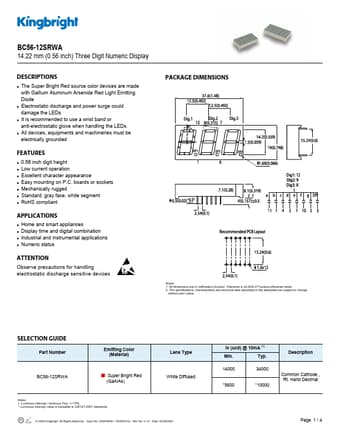

Preview of BC56-12SRWA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC56-12SRWA
Manufacturer
Kingbright
File Size
565.00 KB
Datasheet
BC56-12SRWA-Kingbright.pdf
Description
Three Digit Numeric Display
