BC56-10PAS - 80V 1A NPN medium power transistors

This page provides the datasheet information for the BC56-10PAS, a member of the BC56PAS 80V 1A NPN medium power transistors family.

Datasheet Summary

Description

NPN medium power transistor series encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and visible and solderable side pads.

2.

Features

  • High collector current capability IC and ICM.
  • Reduced Printed-Circuit Board (PCB) area requirements.
  • Exposed heat sink for excellent thermal and electrical conductivity.
  • Two current gain selections.
  • Leadless very small SMD plastic package with medium power capability.
  • Suitable for Automatic Optical Inspection (AOI) of solder joint.
  • AEC-Q101 qualified 3.

📥 Download Datasheet

Datasheet preview – BC56-10PAS

Datasheet Details

Part number BC56-10PAS
Manufacturer nexperia
File Size 251.36 KB
Description 80V 1A NPN medium power transistors
Datasheet download datasheet BC56-10PAS Datasheet
Additional preview pages of the BC56-10PAS datasheet.

📁 Similar Datasheet

  • BC56-11 - THREE DIGIT NUMERIC DISPLAYS (Kingbright Corporation)
  • BC56-11EWA - Three Digit Numeric Display (Kingbright)
  • BC56-11GWA - Three Digit Numeric Display (Kingbright)
  • BC56-11SURKWA - Three Digit Numeric Display (Kingbright)
  • BC56-12 - THREE DIGIT NUMERIC DISPLAYS (Kingbright Corporation)
  • BC56-12GWA - Three Digit Numeric Display (Kingbright)
  • BC56-12SEKWA - Three Digit Numeric Display (Kingbright)
  • BC56-12SRWA - Three Digit Numeric Display (Kingbright)
  • BC56-12SURKWA - Three Digit Numeric Display (Kingbright)
  • BC56-13 - THREE DIGIT NUMERIC DISPLAYS (Kingbright Corporation)
Other Datasheets by nexperia
  • BC56-16PAS - 80V 1A NPN medium power transistors
  • BC56PA - 1A NPN medium power transistors
  • BC56PAS - 80V 1A NPN medium power transistors
  • BC51-10PA - 45V 1A medium power transistors
  • BC51-16PA - 45V 1A medium power transistors
  • BC51PA - 45V 1A medium power transistors
  • BC51PAS - 1A PNP medium power transistors
  • BC52PA - 1A PNP medium power transistors

Full PDF Text Transcription

Click to expand full text

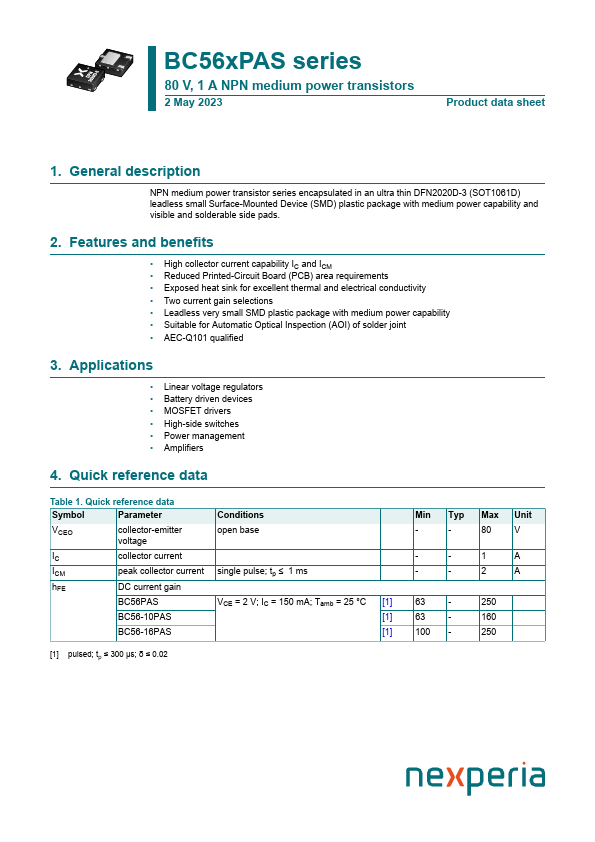

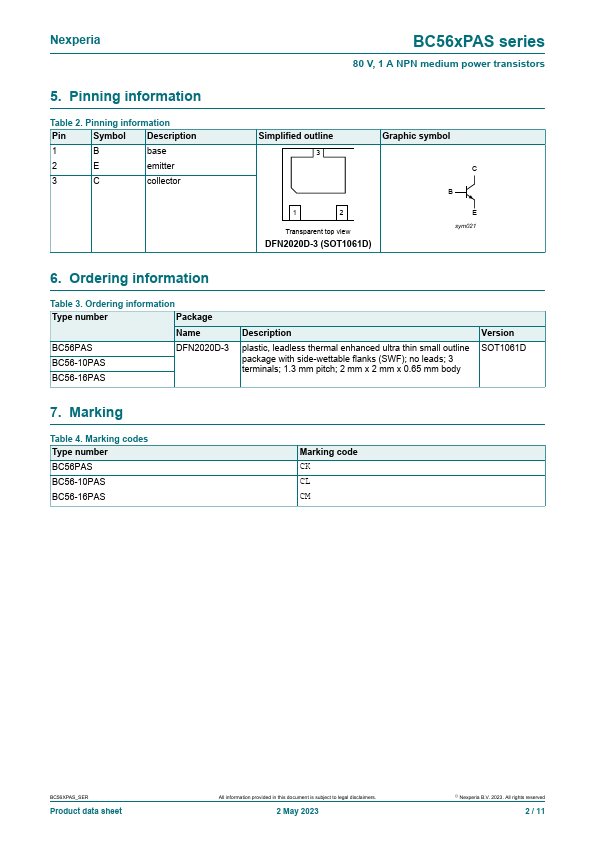

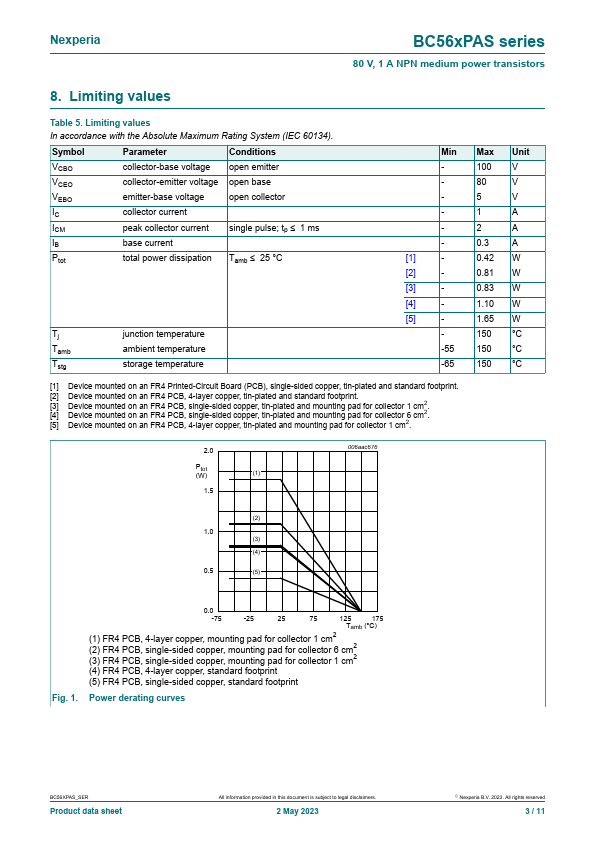

BC56xPAS series 80 V, 1 A NPN medium power transistors 2 May 2023 Product data sheet 1. General description NPN medium power transistor series encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and visible and solderable side pads. 2. Features and benefits • High collector current capability IC and ICM • Reduced Printed-Circuit Board (PCB) area requirements • Exposed heat sink for excellent thermal and electrical conductivity • Two current gain selections • Leadless very small SMD plastic package with medium power capability • Suitable for Automatic Optical Inspection (AOI) of solder joint • AEC-Q101 qualified 3.
