BC56PAS - 80V 1A NPN medium power transistors

Datasheet Summary

Description

NPN medium power transistor series encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and visible and solderable side pads.

2.

Features

  • High collector current capability IC and ICM.
  • Reduced Printed-Circuit Board (PCB) area requirements.
  • Exposed heat sink for excellent thermal and electrical conductivity.
  • Two current gain selections.
  • Leadless very small SMD plastic package with medium power capability.
  • Suitable for Automatic Optical Inspection (AOI) of solder joint.
  • AEC-Q101 qualified 3.

📥 Download Datasheet

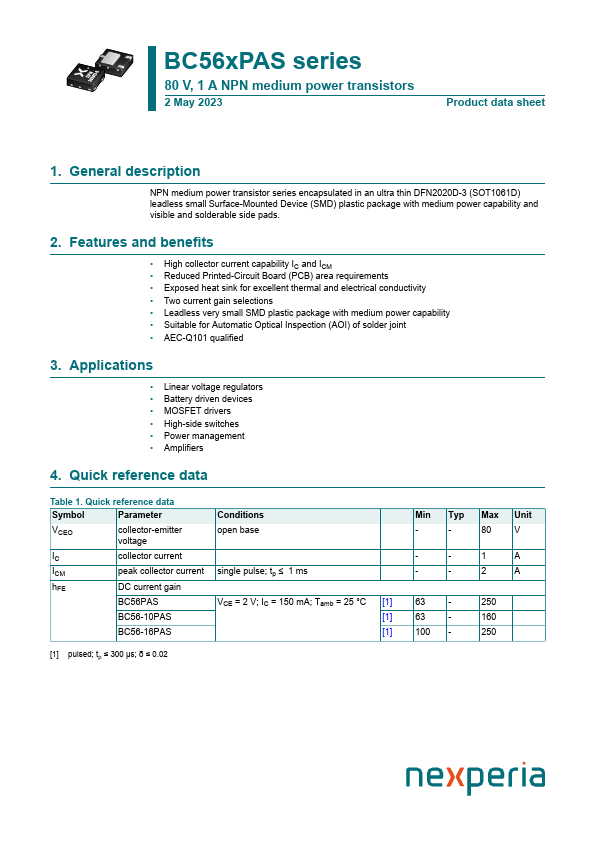

Datasheet preview – BC56PAS

Datasheet Details

Part number BC56PAS
Manufacturer nexperia
File Size 251.36 KB
Description 80V 1A NPN medium power transistors
Datasheet download datasheet BC56PAS Datasheet

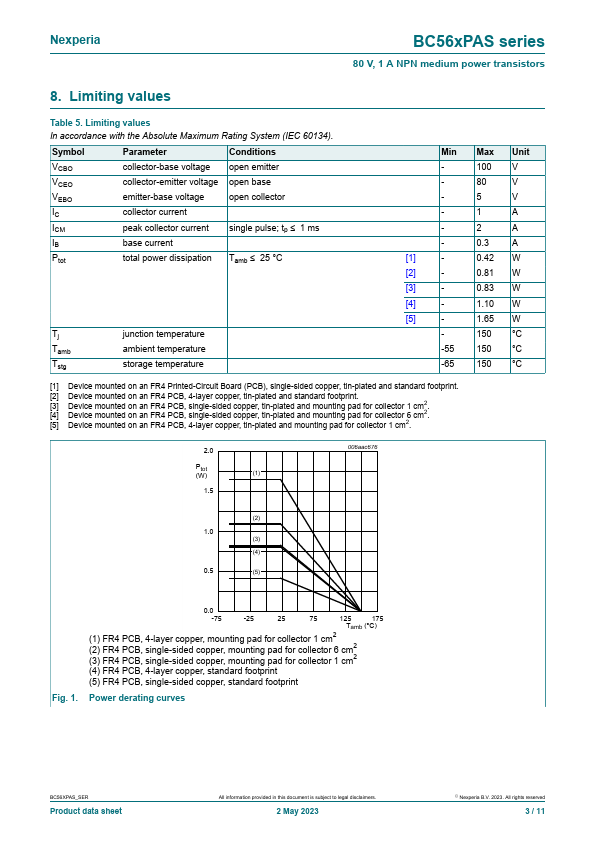

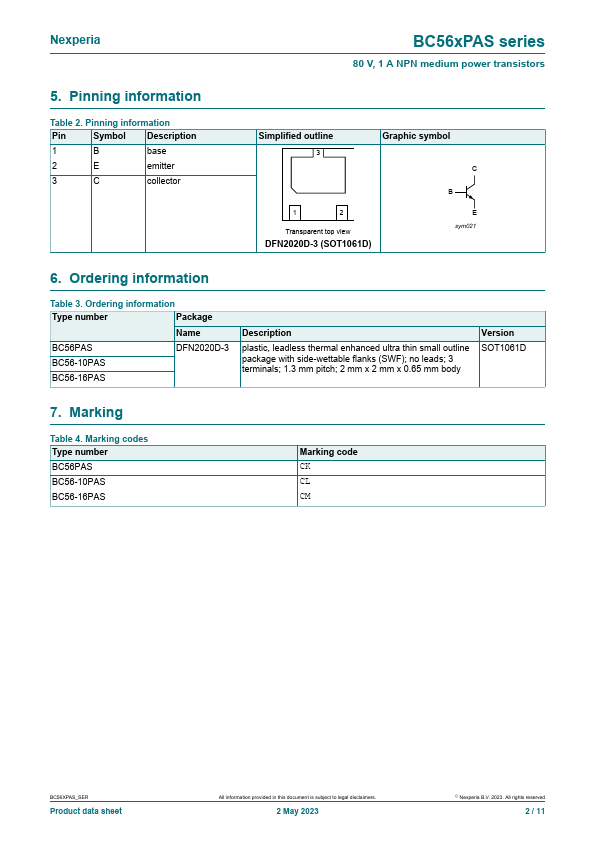

Additional preview pages of the BC56PAS datasheet.

📁 Similar Datasheet

  • BC56PA - NPN medium power transistors (NXP)
  • BC56-11 - THREE DIGIT NUMERIC DISPLAYS (Kingbright Corporation)
  • BC56-11EWA - Three Digit Numeric Display (Kingbright)
  • BC56-11GWA - Three Digit Numeric Display (Kingbright)
  • BC56-11SURKWA - Three Digit Numeric Display (Kingbright)
  • BC56-12 - THREE DIGIT NUMERIC DISPLAYS (Kingbright Corporation)
  • BC56-12GWA - Three Digit Numeric Display (Kingbright)
  • BC56-12SEKWA - Three Digit Numeric Display (Kingbright)
  • BC56-12SRWA - Three Digit Numeric Display (Kingbright)
  • BC56-12SURKWA - Three Digit Numeric Display (Kingbright)
Other Datasheets by nexperia
  • BC56PA - 1A NPN medium power transistors
  • BC56-10PAS - 80V 1A NPN medium power transistors
  • BC56-16PAS - 80V 1A NPN medium power transistors
  • BC51-10PA - 45V 1A medium power transistors
  • BC51-16PA - 45V 1A medium power transistors
  • BC51PA - 45V 1A medium power transistors
  • BC51PAS - 1A PNP medium power transistors
  • BC52PA - 1A PNP medium power transistors

Full PDF Text Transcription

Click to expand full text
BC56xPAS series 80 V, 1 A NPN medium power transistors 2 May 2023 Product data sheet 1. General description NPN medium power transistor series encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and visible and solderable side pads. 2. Features and benefits • High collector current capability IC and ICM • Reduced Printed-Circuit Board (PCB) area requirements • Exposed heat sink for excellent thermal and electrical conductivity • Two current gain selections • Leadless very small SMD plastic package with medium power capability • Suitable for Automatic Optical Inspection (AOI) of solder joint • AEC-Q101 qualified 3.
