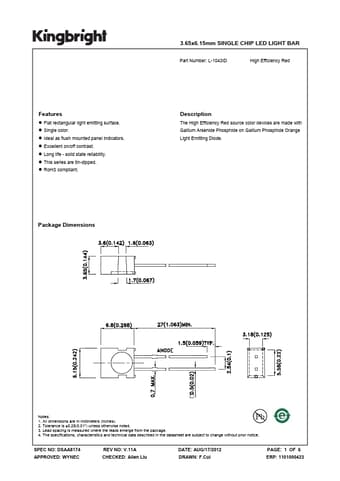

L-1043ID SINGLE CHIP LED LIGHT BAR

The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode. Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measured where the leads emerge from .

L-1043ID Features

* z Flat rectangular light emitting surface. z Single color. z Ideal as flush mounted panel indicators. z Excellent on/off contrast. z Long life - solid state reliability. z This series are tin-dipped. z RoHS compliant. Package Dimensions 3.65x6.15mm SINGLE CHIP LED LIGHT BAR Part Number: L-1043ID
