L-1043SGD Datasheet - Kingbright

L-1043SGD SINGLE CHIP LED LIGHT BAR

The Super Bright Green source color devices are made with Gallium Phosphide Green Light Emitting Diode. Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measured where the lead emerge package. 4. Specifications are subject.

L-1043SGD Features

* FLAT RECTANGULAR LIGHT EMITTING SURFACE. SINGLE COLOR. IDEAL AS FLUSH MOUNTED PANEL INDICATORS. EXCELLENT ON/OFF CONTRAST. LONG LIFE - SOLID STATE RELIABILITY. REFLECTOR COLOR BLACK. THIS SERIES ARE TIN-DIPPED. THE LEAD FRAMES MATERIAL IS IRON AND THESE FRAMES ARE TIN-PLATED AROUND 100 UINCH THICKNE

L-1043SGD-Kingbright.pdf

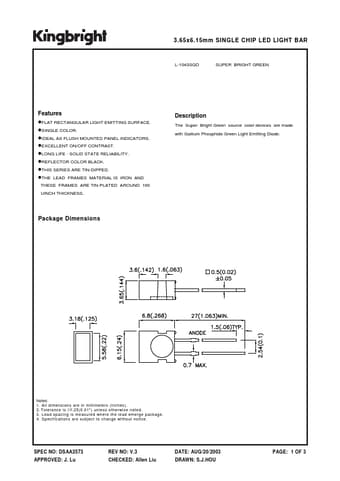

Preview of L-1043SGD PDF
L-1043SGD Datasheet Preview Page 2 L-1043SGD Datasheet Preview Page 3

Datasheet Details

Part number:

L-1043SGD

Manufacturer:

Kingbright

File Size:

71.32 KB

Description:

Single chip led light bar.
