SA56-11EWA - Single Digit Numeric Display

SA56-11EWA Description

SA56-11EWA 14.22 mm (0.56 inch) Single Digit Numeric Display .
The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode FEATURES 0.

SA56-11EWA Applications

* Home and smart appliances Display time and digital combination Industrial and instrumental applications Numeric status PACKAGE DIMENSIONS Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. The specifications, characteristics and technical data

📥 Download Datasheet

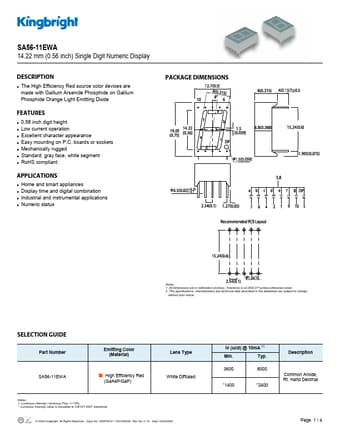

Preview of SA56-11EWA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA56-11EWA
Manufacturer
Kingbright
File Size
542.71 KB
Datasheet
SA56-11EWA-Kingbright.pdf
Description
Single Digit Numeric Display
