WP103YDT

RECTANGULAR SOLID LAMP

WP103YDT Features

* Low power consumption.

* Reliable and rugged.

* Excellent uniformity of light output.

* Suitable for level indicator.

* Long life - solid state reliability.

* RoHS compliant. Package Dimensions 2mmx5mm RECTANGULAR SOLID LAMP Part Number: WP103YDT Yellow Description The

WP103YDT General Description

The Yellow source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Yellow Light Emitting Diode. Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measured where the leads emerge from the package. .

WP103YDT Datasheet (314.95 KB)

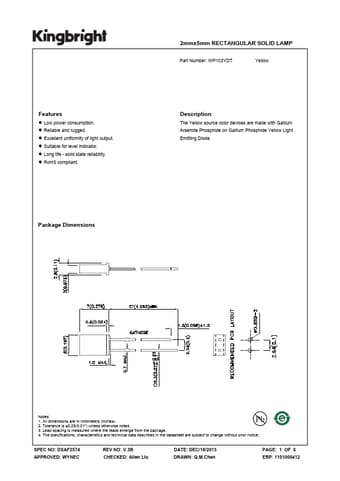

Preview of WP103YDT PDF

Datasheet Details

Part number:

WP103YDT

Manufacturer:

Kingbright

File Size:

314.95 KB

Description:

Rectangular solid lamp.
