2SC1815 - BIPOLAR NPN TRANSISTOR

2SC1815 Description

2SC1815 BIPOLAR TRANSISTOR (NPN) .

2SC1815 Features

* High current And High voltage Excellent hFE Linearity Low Noise Surface Mount device Complementary to 2SA1015 SOT-23 MECHANICAL DATA Case: SOT-23 Case Material: Molded Plastic. UL flammability Classification Rating: 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Weight: 0.008 grams (approximat

📥 Download Datasheet

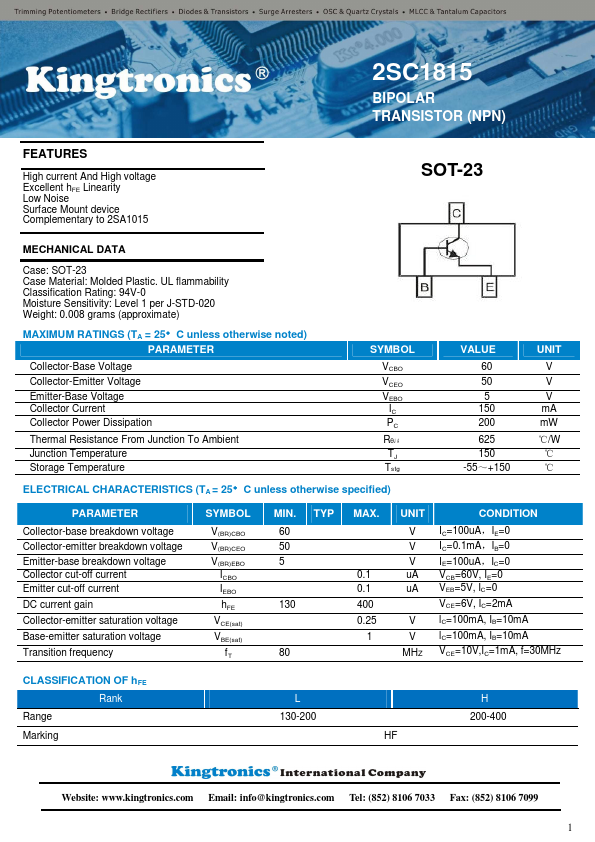

Preview of 2SC1815 PDF

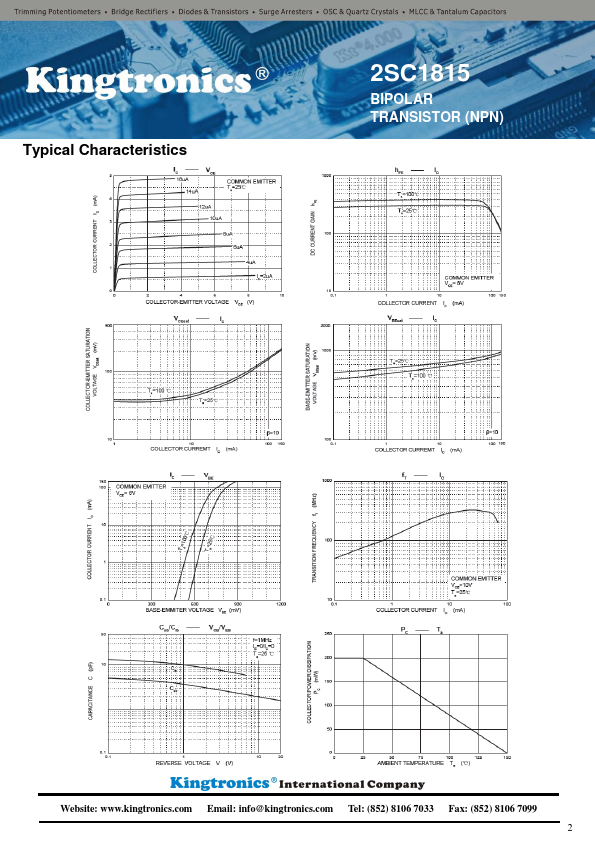

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC1815
Manufacturer
Kingtronics
File Size
395.36 KB
Datasheet
2SC1815-Kingtronics.pdf
Description
BIPOLAR NPN TRANSISTOR
