6A10, 6A1 General Purpose Plastic Rectifier

Kingtronics

Description

6A05 THRU 6A10 General Purpose Plastic Rectifier REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 6.0 Ampere .

📥 Download Datasheet

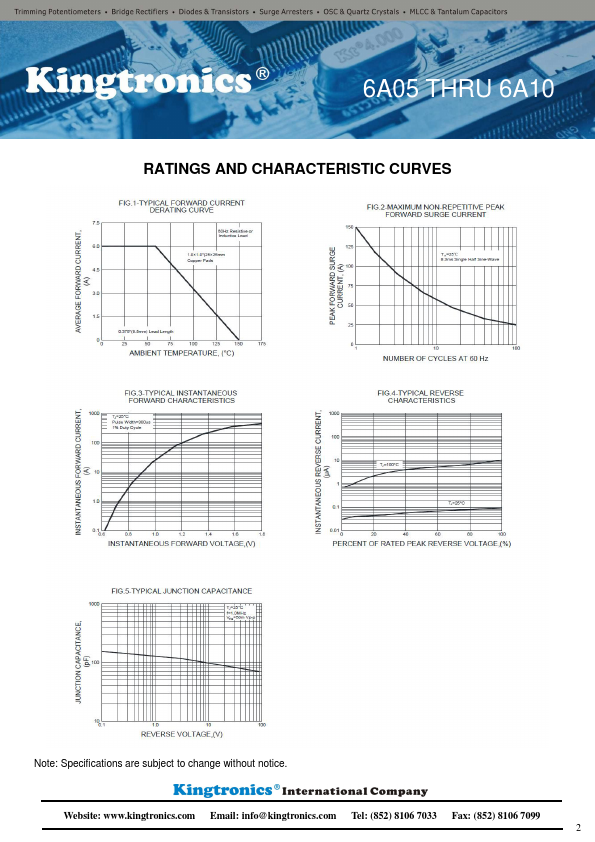

6A10 Datasheet Preview — This datasheet PDF includes multiple part numbers: 6A10, 6A1. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 6A10, 6A1
Manufacturer: Kingtronics
File Size: 288.89 KB
Datasheet: 6A1-Kingtronics.pdf
Description: General Purpose Plastic Rectifier
Note: This datasheet PDF includes multiple part numbers: 6A10, 6A1.
Please refer to the document for exact specifications by model.

Features

* DO-201AD(DO-27) Low forward voltage drop Low leakage current High forward surge capability High temperature soldering guaranteed 260℃/10 seconds,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension MECHANICAL DATA Case: Transfer molded plastic Epoxy: UL94V-0 rate flame retardant Polarity: Color band
