DB153S, DB151S, SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER

DB151S THRU DB157S SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 1.5 Ampere .

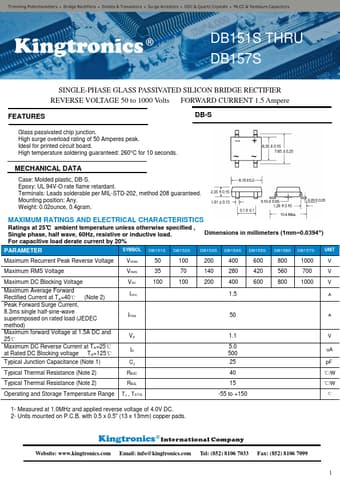

datasheet Preview Page 1 from Datasheet4u.com

DB151S-Kingtronics.pdf

DB153S Datasheet Preview — This datasheet PDF includes multiple part numbers: DB153S, DB151S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DB153S, DB151S

Manufacturer:

Kingtronics

File Size:

574.77 KB

Description:

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: DB153S, DB151S.
Please refer to the document for exact specifications by model.

Features

* DB-S Glass passivated chip junction. High surge overload rating of 50 Amperes peak. Ideal for printed circuit board. High temperature soldering guaranteed: 260°C for 10 seconds. MECHANICAL DATA Case: Molded plastic, DB-S. Epoxy: UL 94V-O rate flame retardant. Terminals: Leads solderable per MIL-S
