DB153G - (DB151G - DB157G) Glass Passivated Bridge Rectifiers

This page provides the datasheet information for the DB153G, a member of the DB151G (DB151G - DB157G) Glass Passivated Bridge Rectifiers family.

Datasheet Summary

Features

  • UL Recognized File # E-96005 Glass passivated junction Ideal for printed circuit board www. DataSheet4U. com Reliable low cost construction utilizing molded plastic technique High surge current capability High temperature soldering guaranteed: 260℃ / 10 seconds at 5 lbs. , ( 2.3 kg ) tension Small size, simple installation Leads solderable per MIL-STD-202 Method 208 .047(1.20) .040(1.02) .205(5.2) .195(5.0) .404(10.3) .386(9.80) .335(8.51) .320(8.13) 45 0 .255(6.5) .245(6.2) .013(0.33) .0088(0.22.

📥 Download Datasheet

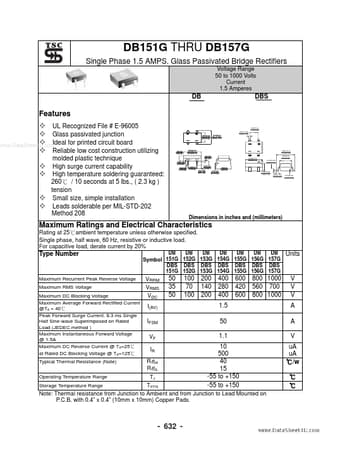

Datasheet preview – DB153G

Datasheet Details

Part number DB153G
Manufacturer Taiwan Semiconductor Company
File Size 129.40 KB
Description (DB151G - DB157G) Glass Passivated Bridge Rectifiers
Datasheet download datasheet DB153G Datasheet
