DB151G - (DB151G - DB157G) Glass Passivated Bridge Rectifiers

Datasheet Summary

Features

  • UL Recognized File # E-96005 Glass passivated junction Ideal for printed circuit board www. DataSheet4U. com Reliable low cost construction utilizing molded plastic technique High surge current capability High temperature soldering guaranteed: 260℃ / 10 seconds at 5 lbs. , ( 2.3 kg ) tension Small size, simple installation Leads solderable per MIL-STD-202 Method 208 .047(1.20) .040(1.02) .205(5.2) .195(5.0) .404(10.3) .386(9.80) .335(8.51) .320(8.13) 45 0 .255(6.5) .245(6.2) .013(0.33) .0088(0.22.

📥 Download Datasheet

Datasheet preview – DB151G

Datasheet Details

Part number DB151G
Manufacturer Taiwan Semiconductor Company
File Size 129.40 KB
Description (DB151G - DB157G) Glass Passivated Bridge Rectifiers
Datasheet download datasheet DB151G Datasheet
Additional preview pages of the DB151G datasheet.

📁 Similar Datasheet

  • DB151G - (DB151G - DB157G) 1.5A Glass Passivated Bridge Rectifier (TAITRON Components Incorporated)
  • DB151G - Silicon Bridge Rectifier (America Semiconductor)
  • DB151 - SILICON BRIDGE RECTIFIER (Rectron)
  • DB151 - GLASS PASSIVATED BRIDGE RECTIFIER (Sunmate)
  • DB151 - GLASS PASSIVATED BRIDGE RECTIFIER (JINAN JINGHENG ELECTRONICS)
  • DB151 - SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER (SEMTECH)
  • DB151 - Glass Passivated Bridge Rectifiers (HY)
  • DB151 - BRIDGE RECTIFIER (RFE)
  • DB151 - 1.5 Amp Single Phase Bridge Rectifier (MCC)
  • DB151 - 1.5A Single-Phase Glass Passivated Bridge Rectifiers (SEP ELECTRONIC)
Other Datasheets by Taiwan Semiconductor Company
  • DB152G - (DB151G - DB157G) Glass Passivated Bridge Rectifiers
  • DB153G - (DB151G - DB157G) Glass Passivated Bridge Rectifiers
  • DB154G - (DB151G - DB157G) Glass Passivated Bridge Rectifiers
  • DB155G - (DB151G - DB157G) Glass Passivated Bridge Rectifiers
  • DB156G - (DB151G - DB157G) Glass Passivated Bridge Rectifiers
  • DB157G - (DB151G - DB157G) Glass Passivated Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text

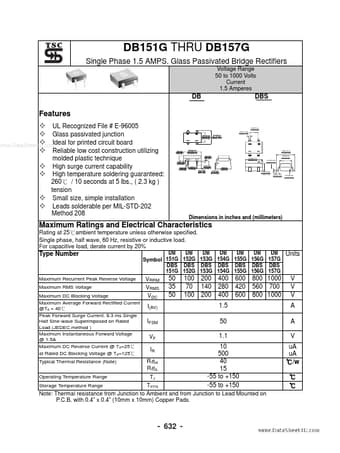

DB151G THRU DB157G Single Phase 1.5 AMPS. Glass Passivated Bridge Rectifiers Voltage Range 50 to 1000 Volts Current 1.5 Amperes DB DBS Features UL Recognized File # E-96005 Glass passivated junction Ideal for printed circuit board www.DataSheet4U.com Reliable low cost construction utilizing molded plastic technique High surge current capability High temperature soldering guaranteed: 260℃ / 10 seconds at 5 lbs., ( 2.3 kg ) tension Small size, simple installation Leads solderable per MIL-STD-202 Method 208 .047(1.20) .040(1.02) .205(5.2) .195(5.0) .404(10.3) .386(9.80) .335(8.51) .320(8.13) 45 0 .255(6.5) .245(6.2) .013(0.33) .0088(0.22) .130(3.30) .120(3.05) .060(1.53) .040(1.02) .013(0.33) .003(0.
