FR301 FAST RECOVERY RECTIFIERS

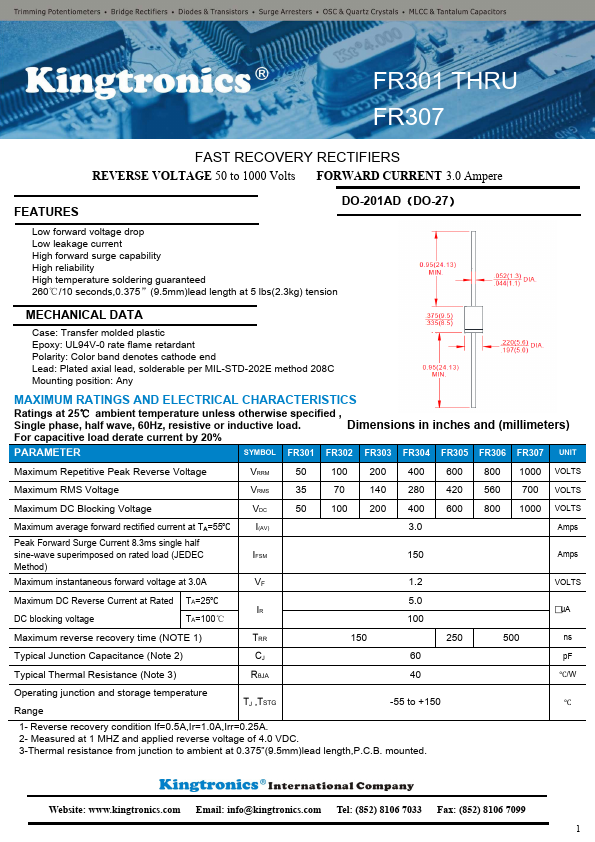

📥 Download Datasheet Datasheet Preview Page 1

Description

FR301 THRU FR307 FAST RECOVERY RECTIFIERS REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 3.0 Ampere .

📥 Download Datasheet

Preview of FR301 PDF

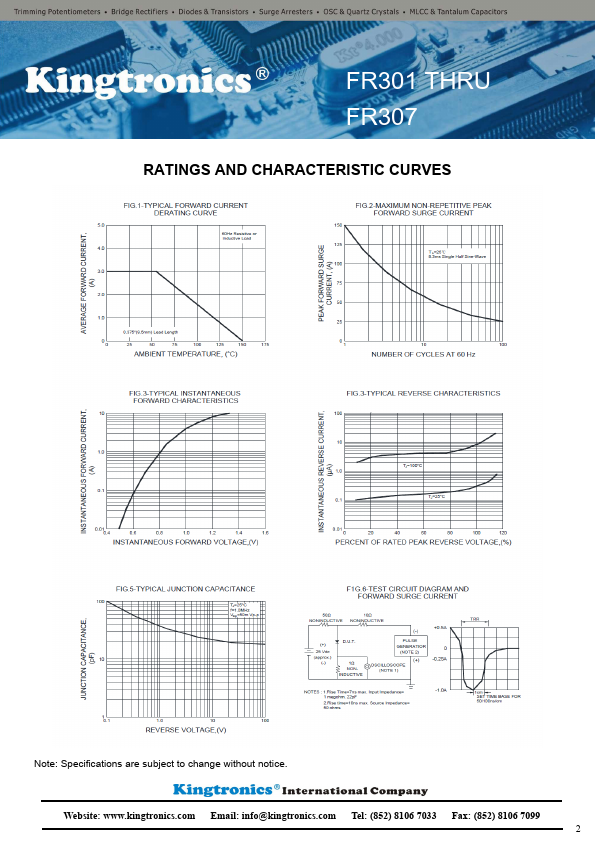

datasheet Preview Page 2

Datasheet Specifications

Part number
FR301
Manufacturer
Kingtronics
File Size
512.66 KB
Datasheet
FR301-Kingtronics.pdf
Description
FAST RECOVERY RECTIFIERS

Features

* DO-201AD（DO-27） Low forward voltage drop Low leakage current High forward surge capability High reliability High temperature soldering guaranteed 260℃/10 seconds,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension MECHANICAL DATA Case: Transfer molded plastic Epoxy: UL94V-0 rate flame retardant Pol
