W08 SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS

W08 Description

W005 THRU W10 SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 1.5 Ampere .

W08 Features

* Rating to 1000VPRV. Ideal for printed circuit board. Low forward voltage drop, high current capability. Reliable low cost construction utilizing molded epoxy technique results in inexpensive product. The plastic material has UL flammability classification 94V-0. WOB MECHANICAL DATA Case: Molded p

📥 Download Datasheet

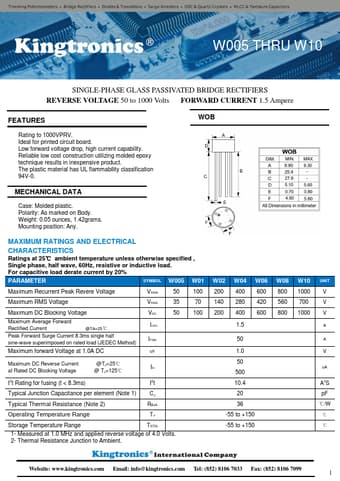

Preview of W08 PDF
datasheet Preview Page 2

Datasheet Details

Part number
W08
Manufacturer
Kingtronics
File Size
351.83 KB
Datasheet
W08-kingtronics.pdf
Description
SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS
