LV2101 UHF HYPERABRUPT TUNING DIODES

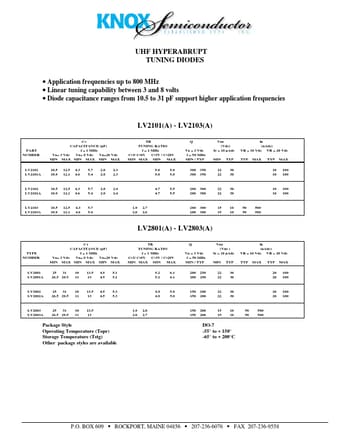

UHF HYPERABRUPT TUNING DIODES Application frequencies up to 800 MHz Linear tuning capability between 3 and 8 volts Diode capacitance ranges from 10.5 to 31 pF support higher application frequencies LV2101(A) - LV2103(A) CT CAPACITANCE (pF) f = 1 MHz VR= 3 Vdc VR= 8 Vdc VR=20 Vdc MIN MAX MIN MAX MIN MAX 10.5 10.9 12.5 12.1 4.3 4.6 5.7 5.4 2.0 2.0 2.3 2.3 TR TUNING RATIO f = 1 MHz C 3/ C 8V C 3V / C 20V MIN MAX MIN MAX 5.0 5.0 5.8 5.8 .

LV2101 Datasheet (37.12 KB)

Preview of LV2101 PDF

Datasheet Details

Part number:

LV2101

Manufacturer:

Knox Semiconductor Inc

File Size:

37.12 KB

Description:

Uhf hyperabrupt tuning diodes.
