SG264 - Phototransistor

SG264 Description

PHOTOINTERRUPTER SG264 DIMENSIONS （Unit : mm） 0.6 1 4.4 SG264 。 。 SG264 is a transmission type photointerrupter combined high power infrared LED .

SG264 Features

* :　4.2mm Gap width : 4.2mm
* PWB direct mount type
* Snap-in mount

SG264 Applications

* Printer MAXIMUM RATINGS （Ta＝25℃） Item Symbol Rating Unit Power Dissipation Forward Current Input Reverse Voltage Pulse Forward Current
* 1 PD IF VR IFP 75 mW 50 mA 5V 0.5 A Output - Collector Power Dissipation Collector Current Collector-Emitter Voltage Pc Ic VC

📥 Download Datasheet

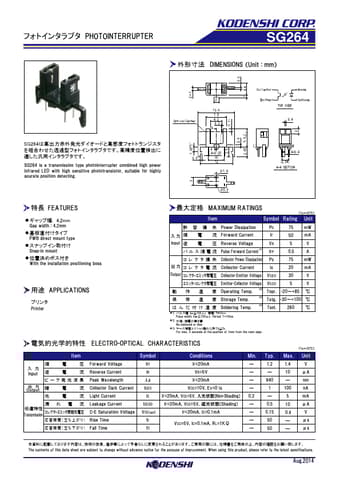

Preview of SG264 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SG264
Manufacturer
Kodenshi
File Size
139.41 KB
Datasheet
SG264_Kodenshi.pdf
Description
Phototransistor
