SG2626 Datasheet - Microsemi

SG2626 Dual High Speed Driver

The SG1626 series is a dual inverting monolithic high speed driver that is pin-to-pin compatible with the DS0026, TSC426 and ICL7667. This device utilizes high voltage Schottky logic to convert TTL signals to high speed outputs up to 18 V. The totem pole outputs have 3 A peak current capability, whi.

SG2626 Features

* Pin-to-Pin Compatible with DS0026, TSC426 and ICL7667.

* Totem Pole Outputs with 3.0 A Peak Current Capability.

* Supply Voltage to 22 V.

* Rise and Fall times less than 25 ns.

* Propagatio

SG2626 Datasheet (564.36 KB)

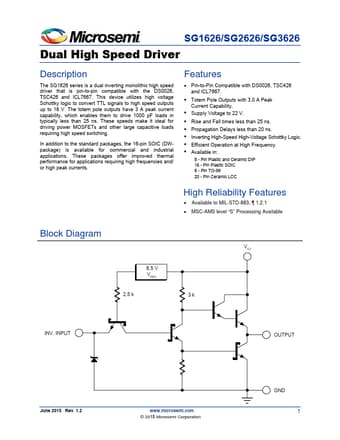

Preview of SG2626 PDF

Datasheet Details

Part number:

SG2626

Manufacturer:

Microsemi ↗

File Size:

564.36 KB

Description:

Dual high speed driver.
