KS32026DAT - Single N-Channel Advanced Power MOSFET

Product Overview

Datasheet Details

Part number	KS32026DAT
Manufacturer	Kwansemi
File Size	1.07 MB
Description	Single N-Channel Advanced Power MOSFET
Datasheet	KS32026DAT Datasheet

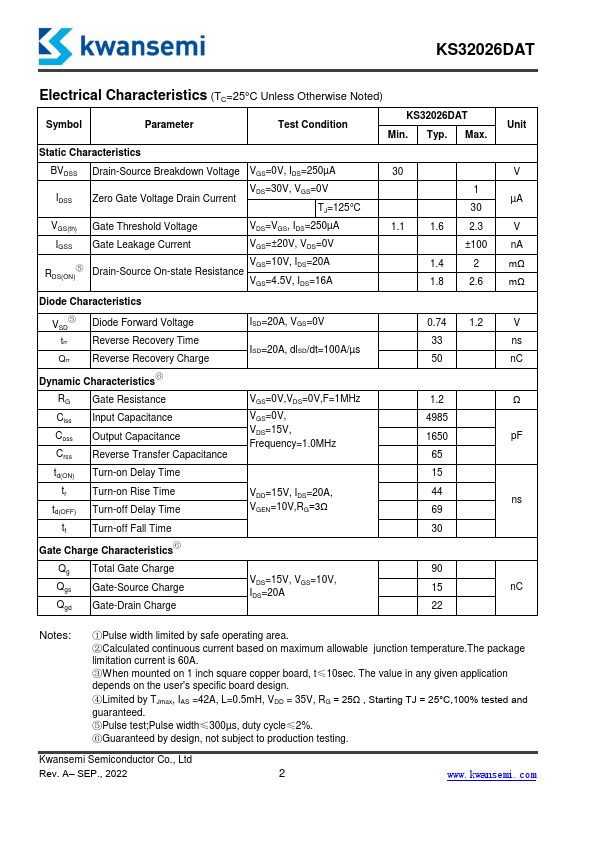

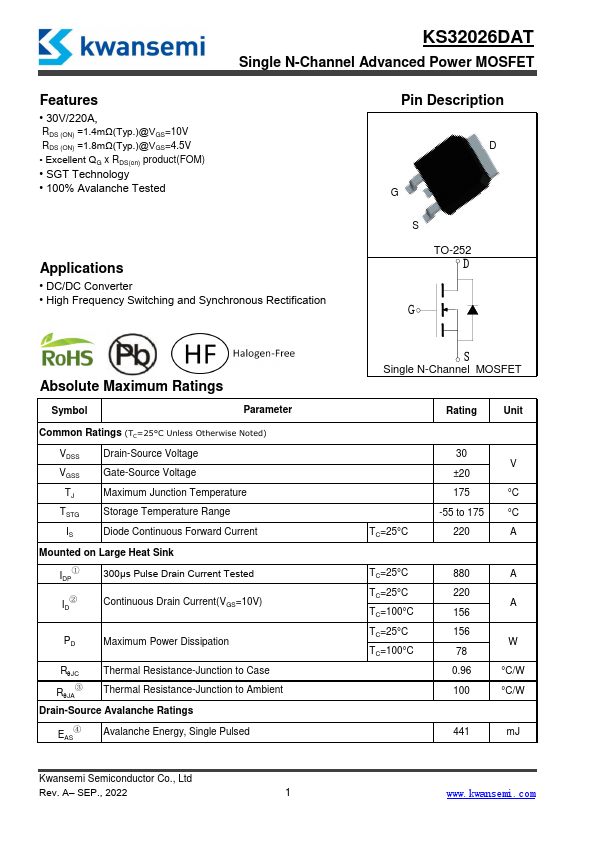

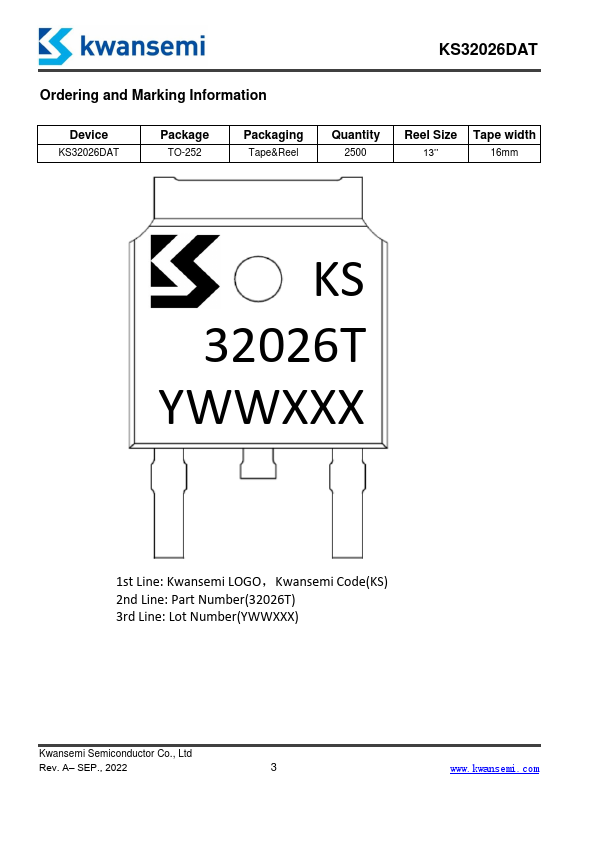

Additional preview pages of the KS32026DAT datasheet.

Product details

Description

D G S TO-252 D G Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current Mounted on Large Heat Sink IDP① 300μs Pulse Drain Current Tested ID② Continuous Drain Current(VGS=10V) PD Maximum Power Dissipation RqJC ③ RqJA Thermal Resistance-Junction to Case Thermal Resistance-Junction to Ambient Dr

Features

30V/220A, RDS (ON) =1.4mΩ(Typ. )@VGS=10V RDS (ON) =1.8mΩ(Typ. )@VGS=4.5V.
Excellent QG x RDS(on) product(FOM).
SGT Technology.
100% Avalanche Tested.
