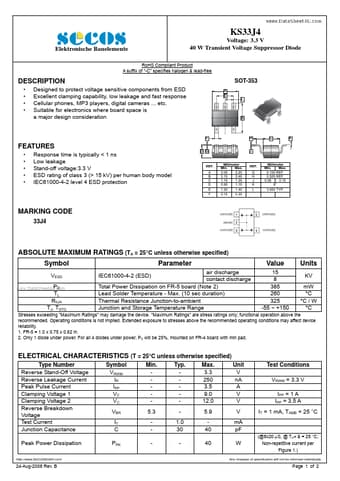

KS33J4 Datasheet - SeCoS Halbleitertechnologie GmbH

KS33J4 40W Transient Voltage Suppressor Diode

Designed to protect voltage sensitive components from ESD Excellent clamping capability, low leakage and fast response Cellular phones, MP3 players, digital cameras etc. Suitable for electronics where board space is a major design consideration A E SOT-353 L B F H J Millimeter Min. Max..

KS33J4 Features

* Response time is typically < 1 ns Low leakage Stand-off voltage:3.3 V ESD rating of class 3 (> 15 kV) per human body model IEC61000-4-2 level 4 ESD protection D G REF. A B C D E F REF. G H J K L Millimeter Min. Max. 0.100 REF. 0.525 REF. 0.08 0.15 8° 0.650 TYP. MARKING CODE 33J4 ABSO

KS33J4 Datasheet (145.59 KB)
