ML630Q791 - 32-bit Microcontroller

Product Overview

LAPIS Semiconductor

Part number	ML630Q791
Manufacturer	LAPIS Semiconductor
File Size	476.95 KB
Description	32-bit Microcontroller
Datasheet	ML630Q791 Datasheet

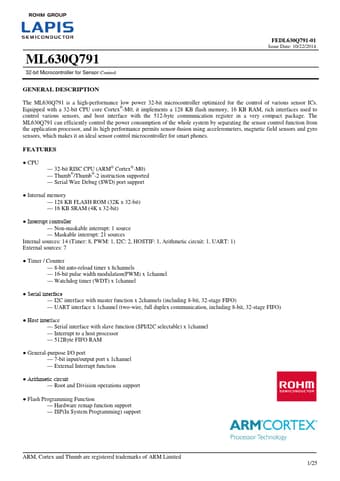

Additional preview pages of the ML630Q791 datasheet.

The ML630Q791 is a high-performance low power 32-bit microcontroller optimized for the control of various sensor ICs.

CPU.
32-bit RISC CPU (ARM® Cortex®-M0).
Thumb®/Thumb®-2 instruction supported.
Serial Wire Debug (SWD) port support.
Internal memory.
128 KB FLASH ROM (32K x 32-bit).
16 KB SRAM (4K x 32-bit).
Interrupt controller.
Non-maskable interrupt: 1 source.
Maskable interrupt: 21 sources Internal sources: 14 (Timer: 8, PWM: 1, I2C: 2, HOSTIF: 1, Arithmetic circuit: 1, UART: 1) External sources: 7.
Timer / Counter.
