ML63326

4-Bit Microcontroller

ML63326 Features

* Rich instruction set 439 instructions Transfer, rotate, increment, decrement, arithmetic operations, comparison, logic operations, mask operations, bit operations, ROM table reference, external memory transfer, stack operations, flag operations, branch, conditional branch, call/return, con

ML63326 General Description

The ML63326 is a low power 4-bit microcontroller which incorporates the OKI original CPU core nX-4/250 and provides a minimum instruction execution time of 1µs (@2MHz). It contains 24K-word program memory, 1536-nibble data memory, 4-bit input port, four 4-bit output ports, five 4-bit and 2-bit input.

ML63326 Datasheet (105.74 KB)

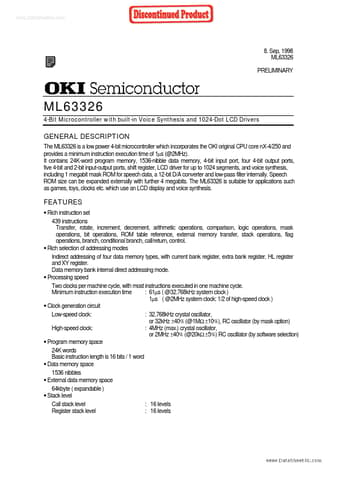

Preview of ML63326 PDF

Datasheet Details

Part number:

ML63326

Manufacturer:

OKI electronic

File Size:

105.74 KB

Description:

4-bit microcontroller.
www.DataSheet4U.com 8. Sep, 1998 ML63326 PRELIMINARY ML63326 4-Bit Microcontroller with built-in Voice Synthesis and 1024-Dot LCD Drivers GENERAL D.
