ML9472 - Static 1/2Duty 60 Output LCD Driver

LAPIS

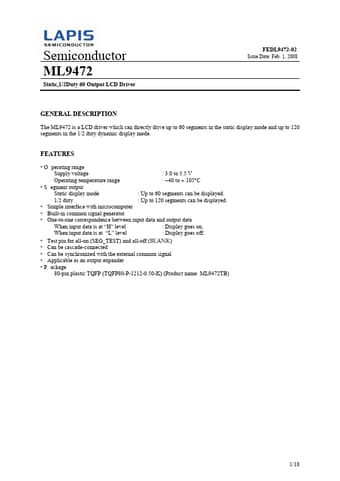

ML9472 Datasheet Preview — Preview of ML9472 PDF

Datasheet Details

Part number	ML9472
Manufacturer	LAPIS
File Size	575.19 KB
Description	Static 1/2Duty 60 Output LCD Driver
Datasheet	ML9472-LAPIS.pdf

ML9472 Product details

Description

The ML9472 is a LCD driver which can directly drive up to 60 segments in the static display mode and up to 120 segments in the 1/2 duty dynamic display mode.

Features

O perating range Supply voltage : 3.0 to 5.5 V Operating temperature range : 40 to  105C.
S egment output Static display mode : Up to 60 segments can be displayed. 1/2 duty : Up to 120 segments can be displayed.
Simple interface with microcomputer.
Built-in common signal generator.
One-to-one correspondence between input data and output data When input data is at “H” level : Display goes on. When input data is at “L” level : Display goes off.
