ML9470-11 - 1/2Duty 80 Output LCD Driver

LAPIS

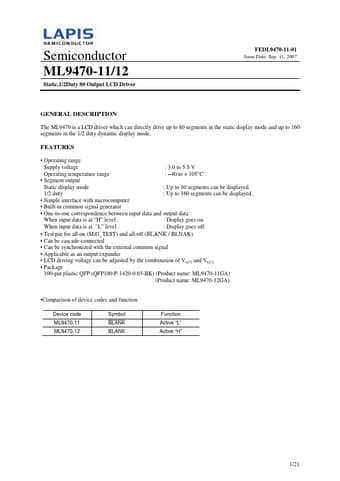

ML9470-11 Datasheet Preview — Preview of ML9470-11 PDF

Datasheet Details

Part number	ML9470-11
Manufacturer	LAPIS
File Size	391.39 KB
Description	1/2Duty 80 Output LCD Driver
Datasheet	ML9470-11-LAPIS.pdf

ML9470-11 Product details

Description

The ML9470 is a LCD driver which can directly drive up to 80 segments in the static display mode and up to 160 segments in the 1/2 duty dynamic display mode.

Features

Operating range Supply voltage : 3.0 to 5.5 V Operating temperature range : 40 to + 105°C.
Segment output Static display mode : Up to 80 segments can be displayed. 1/2 duty : Up to 160 segments can be displayed.
Simple interface with microcomputer.
Built-in common signal generator.
One-to-one correspondence between input data and output data When input data is at “H” level : Display goes on. When input data is at “L” level : Displa.
