LD1016H - 16 Channel Constant current LED Driver

Description

and is subject to change without notice.

LDT Inc.

does NOT assume any responsibility for use of circuits described.

Features

  • 16 constant-current output channels.
  • Output current : set -up at 3mA to 90mA with an external resistor.
  • Pin to pin deviation : max ± 1.5%.
  • Chip to chip deviation : max ± 3.0%.
  • 5V CMOS compatible input.
  • Delayed output to prevent inrush current.
  • Maximum data transfer rate : max 30MHz.
  • Fast response of OEB - OUTn (min) : 60ns @VDD=5V, 100ns.
  • 5V supply voltage.
  • Package : LD1016H-SP (SOP-24), LD1016H-SS (SSOP-2.

📥 Download Datasheet

Datasheet preview – LD1016H

Datasheet Details

Part number LD1016H
Manufacturer LDT
File Size 356.81 KB
Description 16 Channel Constant current LED Driver
Datasheet download datasheet LD1016H Datasheet
Additional preview pages of the LD1016H datasheet.

📁 Similar Datasheet

  • LD1010D - High Performance N-Channel POWERJFET (Lovoltech)
  • LD1010DA - High Performance N-Channel POWERJFET (Lovoltech)
  • LD1014D - High Performance N-Channel POWERJFET (Lovoltech)
  • LD101WX1-SL01 - TFT LCD Module (LG)
  • LD1003S - High Performance N-Channel POWERJFET (Lovoltech)
  • LD1030 - DFB Transmitter OSA (OEpic)
  • LD1041 - Sunlight Readable 10.4 LCD Display (LiteMax Electronics)
  • LD1083 - 7.5A Low Dropout Positive Regulator (HOTCHIP)
  • LD1084 - 5A low-drop positive voltage regulator adjustable (ST Microelectronics)
  • LD1084 - 5A Low Dropout Linear Regulator (TAITRON)
Other Datasheets by LDT

    Full PDF Text Transcription

    Click to expand full text

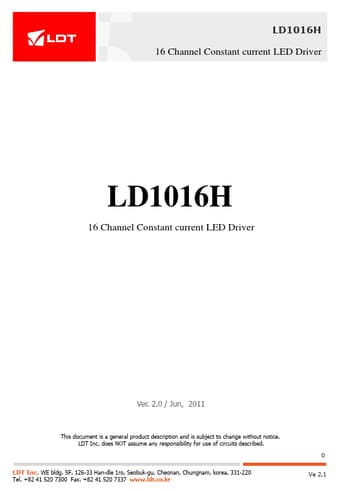

    LD1016H 16 Channel Constant currenLt DLE1D 0Dr1iv6er H 16 Channel Constant current LED Driver LD1016H 16 Channel Constant current LED Driver Ver. 2.0 / Jun, 2011 This document is a general product description and is subject to change without notice. LDT Inc. does NOT assume any responsibility for use of circuits described. LDT Inc. WE bldg. 5F, 126-33 Han-dle 1ro, Seobuk-gu, Cheonan, Chungnam, korea, 331-220 Tel. +82 41 520 7300 Fax. +82 41 520 7337 www.ldt.co.kr 0 Ve 2.1 LD1016H 16 Channel Constant current LED Driver INTRODUCTION The LD1016H is specifically designed for LED display applications. The constant current output can be preset through an external resistor (IOUT = 3mA to 90mA). The device consists of 16bit shift register, latch and constant current output driver.
