LC2127 - 1.2A 1.5MHz 7V Synchronous Buck Converter

LC2127 Description

LC2127 1.2A 1.5MHz 7V Synchronous Buck Converter .
The LC2127 is a high-efficiency, DC-to-DC stepdown switching regulators, capable of delivering up to 1.

LC2127 Features

* High Efficiency: Up to 97%
* Capable of Delivering 1.2A
* 1.5MHz Switching Frequency
* No External Schottky Diode Needed
* Low dropout 100% Duty operation
* Internal Compensation and Soft-Start
* Current Mode control
* 0.6V Reference for Low Output voltages
* Lo

LC2127 Applications

* Cellular phones
* Digital Cameras
* MP3 and MP4 players
* Set top boxes
* Wireless and DSL Modems
* USB supplied Devices in Notebooks
* Portable Devices TYPICAL APPLICATION PIN OUT & MARKING FB VIN FB VIN 4 5 4 5 GHYW GHYW 3 2 1 3 2 1 EN GND SW EN GN

📥 Download Datasheet

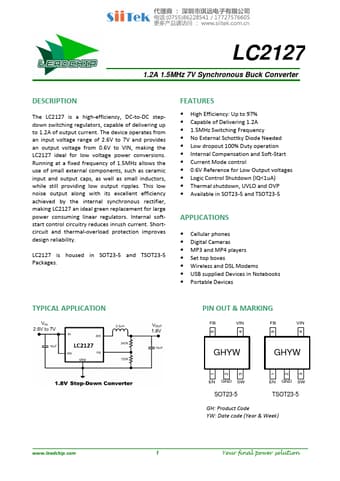

Preview of LC2127 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LC2127
Manufacturer
LEADCHIP
File Size
697.37 KB
Datasheet
LC2127-LEADCHIP.pdf
Description
1.2A 1.5MHz 7V Synchronous Buck Converter
