LC2137 - 1.2A 1.5MHz 7V Synchronous Buck Converter

LC2137 Description

LC2137 1.2A 1.5MHz 7V Synchronous Buck Converter .
The LC2137 is a high-efficiency, DC-to-DC stepdown switching regulators, capable of delivering up to 1.

LC2137 Features

* High Efficiency: Up to 97%
* Capable of Delivering 1.2A
* 1.5MHz Switching Frequency
* No External Schottky Diode Needed
* Low dropout 100% Duty operation
* Internal Compensation and Soft-Start
* Current Mode control
* 0.6V Reference for Low Output voltages
* Lo

LC2137 Applications

* Cellular phones
* Digital Cameras
* MP3 and MP4 players
* Set top boxes
* Wireless and DSL Modems
* USB supplied Devices in Notebooks
* Portable Devices TYPICAL APPLICATION PIN OUT & MARKING FB VIN 4 5 GPYW 3 2 1 EN GND SW SOT23-5 www. leadchip. com DFN2

📥 Download Datasheet

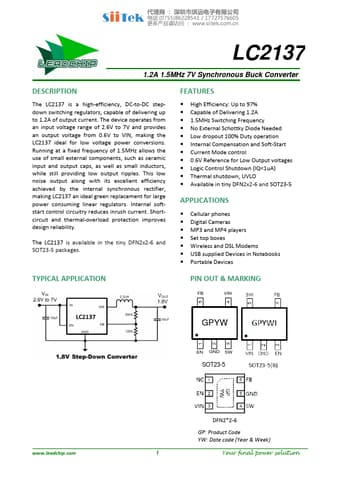

Preview of LC2137 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LC2137
Manufacturer
LEADCHIP
File Size
678.08 KB
Datasheet
LC2137-LEADCHIP.pdf
Description
1.2A 1.5MHz 7V Synchronous Buck Converter
