LC2334 - 16V High Efficiency Synchronous Step-Down Converter

LEADCHIP

📥 Download Datasheet

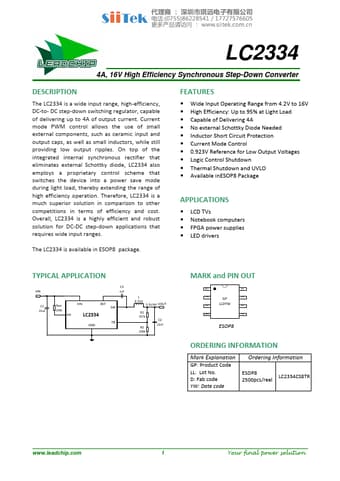

LC2334 Datasheet Preview — Preview of LC2334 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LC2334
Manufacturer	LEADCHIP
File Size	595.28 KB
Description	16V High Efficiency Synchronous Step-Down Converter
Datasheet	LC2334-LEADCHIP.pdf

LC2334 Product details

Description

The LC2334 is a wide input range, high-efficiency, DC-to- DC step-down switching regulator, capable of delivering up to 4A of output current.

Features

Wide Input Operating Range from 4.2V to 16V.
High Efficiency: Up to 95% at Light Load.
Capable of Delivering 4A.
No external Schottky Diode Needed.
Inductor Short Circuit Protection.
Current Mode Control.
0.923V Reference for Low Output Voltages.
Logic Control Shutdown.
Thermal Shutdown and UVLO.
Available inESOP8 Package.
