AHR-B10 - AC/DC Current transducer

AC/DC Current transducer AHR-B10 The transducer for the electronic measurement of DC & distorted AC waveform currents, with galvanic isolation between the primary circuit (power) and the secondary circuit (measurement).

True RMS 0-10 V voltage output.

IPN = 500 ..

2000 A Electrical data Primary nominal DC & AC current I PN (At rms) 500 800 1000 1500 2000 Primary AC current max.

peak value 1) I P (A) 2000 2500 2000 2500 3000 Output voltage (Analog) V OUT (VDC) 0-10 0-10 0-10 0-10 0-10 Type Fea

AHR-B10 Features

* DC + distorted AC waveform currents measurement

* True RMS output

* Busbar or panel mounting

* Split core type

* Insulated plastic case recognized according to UL94-V0. AHR 500 B10 AHR 800 B10 AHR 1000 B10 AHR 1500 B10 AHR 2000 B10 RL VC IC VSL ÎP Load re

AHR-B10_LEM.pdf

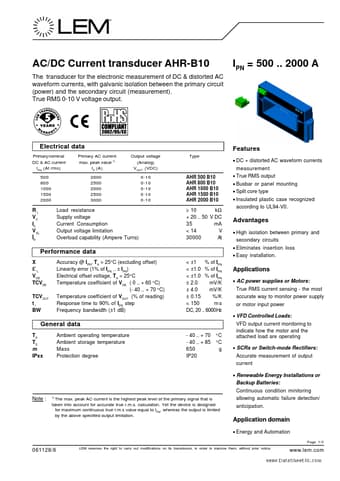

Preview of AHR-B10 PDF
