AHR1000 Datasheet - Raychem

AHR1000 - PolySwitch PTC Devices Resettable Fuse

Raychem Circuit Protection 308 Constitution Drive Menlo Park, CA 94025-1164 800-227-4856 FAX 800-227-4866 R PolySwitch® PTC Devices Resettable Fuse PRODUCT: AHR1000 DOCUMENT: SCD 24388 PCN: 826253 REV LETTER: G REV DATE: MAY 8, 2000 PAGE NO.: 1 OF 2 Specification Status: RELEASED Electrical Rating Voltage: 16V DC MAX INSULATING MATERIAL: Cured, Flame Retarded Epoxy Polymer LEAD MATERIAL: 20 AWG Tin/Lead Plated Copper (0.8 mm [0.032] nom.

diameter) PART MARKING: Raychem Logo and Voltage 16 H1

AHR1000_Raychem.pdf

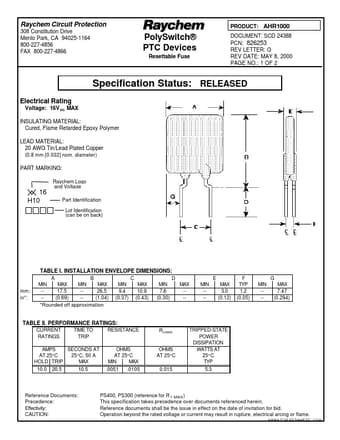

Preview of AHR1000 PDF
AHR1000 Datasheet Preview Page 2

Datasheet Details

Part number:

AHR1000

Manufacturer:

Raychem

File Size:

89.61 KB

Description:

Polyswitch ptc devices resettable fuse.
